How to Correct Mistakes When Using?

If users choose wrong application , resulting in reduced efficiency, driving tool selected measurement errors, crisis management for using and avoid security risks.

In order to solve the above problems, JKX provides the following Cutting and Grinding Recommended Practice information for you to obtain correct solutions.

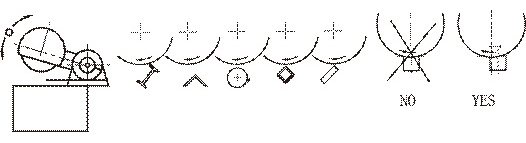

* Arrange the workpiece so that a uniform section can be cut:

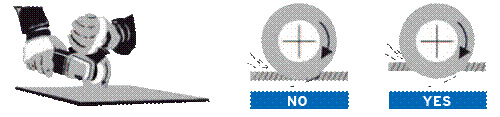

1) 、Cutting Plate

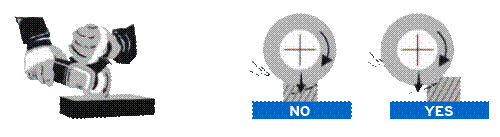

2) 、Cutting Square Material

3) 、Cutting Proximate Matter

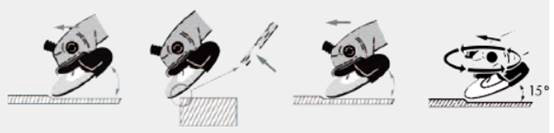

* Grinding Rough Work

Ø  Do not use a cutting-off wheel for snagging

Ø  Do not work with the side of a wheel, you will cut the reinforcing cloths

Ø  Work at angle of 10 to 30 with a longitudinal action

* Grinding Finishing Work

Ø  Angle of work 15

Ø  Rotary action

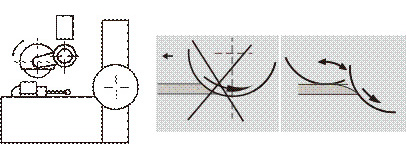

* Fixed Machine

1)、Downstroke Heads

Ø  Lay out the shape parts in order to have a constant section

Ø  Avoid any wedging of the grinding wheel

Ø  Make sure the wheel is cleared

2) 、Automatic Feed

Ø In the case of thick parts,use the

Ø reciprocating motion of the carriage

2. Oscillating Heads

* Operating Mode

1 – Oscillating

2 – Cutting-off

Do not use this type of machine with a downstroke action
